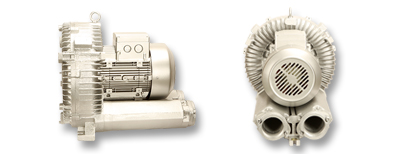

| 링브로워 각 모델 |
| |
| - 1 Stage 3 Phase(1단 3상) |
| |
|
| IHB- |
1100,1200,1300,1100(PH),1200(PH),1300(PH) |
|
|
 |
|
|
|
 |
| 항
목 |
IHB-1100 |
1100PH
프리미엄
고효율 |
IHB-1200 |
1200PH
프리미엄
고효율 |
IHB-1300 |
1300PH
프리미엄
고효율 |
| 50Hz |
60Hz |
60Hz |
50Hz |
60Hz |
60Hz |
50Hz |
60Hz |
60Hz |
| 상수 Phase |
3 |
| 모터 Motor |
HP |
15 |
16.8 |
17.6 |
20 |
20.4 |
20.4 |
25 |
30.3 |
30.3 |
| kW |
11 |
12.6 |
13.2 |
15 |
15.3 |
15.3 |
18.5 |
22.7 |
22.7 |
| 소음 Sound Level |
dB(A) |
78 |
82 |
82 |
78 |
82 |
82 |
78 |
82 |
82 |
| 전류 Current(A) |
220V |
40 |
40 |
43.3 |
54 |
54 |
53.6 |
65 |
76 |
76.2 |
| 380V |
23.2 |
23.2 |
25 |
31.3 |
31.2 |
31 |
37.6 |
43.9 |
44 |
| 정격토출 Rated Pressure |
mmaq |
2100 |
2100 |
2100 |
3000 |
3000 |
3000 |
4300 |
4500 |
4500 |
inch  |
82.68 |
82.68 |
82.68 |
118.11 |
118.11 |
118.11 |
169.29 |
177.17 |
177.17 |
| psig |
2.99 |
2.99 |
2.99 |
4.27 |
4.27 |
4.27 |
6.12 |
6.40 |
6.40 |
| 정격흡입 Rated Vacuum |
mmaq |
2000 |
2000 |
2000 |
2800 |
2900 |
2900 |
3600 |
3800 |
3800 |
| inch |
78.74 |
78.74 |
78.74 |
110.24 |
114.17 |
114.17 |
141.73 |
149.61 |
149.61 |
| psig |
2.84 |
2.84 |
2.84 |
3.98 |
4.12 |
4.12 |
5.12 |
5.40 |
5.40 |
| 최대풍량 Max Air Flow |
㎥/min |
17 |
20 |
20 |
17 |
20 |
20 |
17 |
20 |
20 |
| cfm |
600.4 |
706.3 |
706.3 |
600.4 |
706.3 |
706.3 |
600.4 |
706.3 |
706.3 |
| 재질 Material |
Impeller |
ALDC12.1 |
ALDC12.1 |
ALDC12.1 |
| Casing |
Cast Iron (FC-20) |
Cast Iron (FC-20) |
Cast Iron (FC-20) |
| 베어링 Bearing |
Front/Rear |
6308z/6308z |
6308z/6308z |
6308z/6308z |
| 무게 Weight |
234 |
234 |
248 |
248 |
248 |
257 |
260 |
260 |
279 |
| 기동계급 Starting Class |
H |
H |
H |
| 절연계급 Insulation Class |
F |
F |
F |
|
 |
|
|
|
;)
