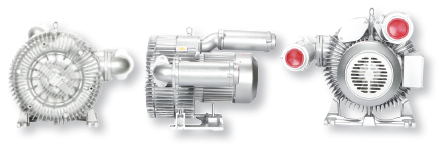

| 링브로워 각 모델 |
| |
| - 2 Stage 3 Phase(2단 3상) |
| |
|
| IHB- |
1112,
1212, 1212, 1112(PH),
1212(PH), 1212S(PH) |
Single
Phase (3Ø) |
|
 |
|
|
|
 |
| 항
목 |
IHB-1112 |
1112PH
프리미엄
고효율 |
IHB-1212 |
1212PH
프리미엄
고효율 |
IHB-1212S |
1212SPH
프리미엄
고효율 |
| 50Hz |
60Hz |
60Hz |
50Hz |
60Hz |
60Hz |
50Hz |
60Hz |
60Hz |
| 상수 Phase |
3 |
3 |
3 |
| 모터 Motor |
HP |
15 |
16.8 |
17.6 |
20 |
23.1 |
23.1 |
30 |
35.7 |
35.7 |
| kW |
11 |
12.6 |
13.2 |
15 |
17.3 |
17.3 |
22 |
26.8 |
22.7 |
| 소음 Sound Level |
dB(A) |
79 |
87 |
87 |
79 |
87 |
87 |
80 |
83 |
83 |
| 전류 Current(A) |
220V |
40 |
40 |
43.3 |
54 |
56 |
55.5 |
54 |
82 |
81 |
| 380V |
23.2 |
23.2 |
25.0 |
31.3 |
32.3 |
32.0 |
31.7 |
47.3 |
47 |
| 정격토출 Rated Pressure |
mmaq |
3000 |
3000 |
3000 |
4000 |
4000 |
4000 |
6000 |
6000 |
6000 |
inch  |
118.11 |
118.11 |
118.11 |
157.48 |
157.48 |
157.48 |
236.2 |
236.2 |
236.2 |
| psig |
4.27 |
4.27 |
4.27 |
5.69 |
5.69 |
5.69 |
8.53 |
8.53 |
8.53 |
| 정격흡입 Rated Vacuum |
mmaq |
2800 |
3000 |
3000 |
3800 |
3500 |
3500 |
4000 |
4000 |
4000 |
| inch |
110.24 |
118.11 |
118.11 |
149.61 |
137.80 |
137.80 |
157.5 |
157.5 |
157.5 |
| psig |
3.98 |
4.27 |
4.27 |
5.40 |
4.98 |
4.98 |
5.69 |
5.69 |
5.69 |
| 최대풍량 Max Air Flow |
㎥/min |
13.5 |
17 |
17 |
13.5 |
17 |
17 |
13.5 |
11 |
12 |
| cfm |
476.8 |
600.4 |
600.4 |
476.8 |
600.4 |
600.4 |
476.7 |
388.5 |
423.8 |
| 재질 Material |
Impeller |
ALDC12.1 |
ALDC12.1 |
ALDC12.1 |
| Casing |
Cast Iron (FC-20) |
Cast Iron (FC-20) |
Cast Iron (FC-20) |
| 베어링 Bearing |
Front/Middle/Rear |
6307z/6308z |
6307z/6308z |
6308z/6214zz/6308z |
| 무게 Weight |
245 |
245 |
263 |
263 |
263 |
279 |
298 |
|
| 기동계급 Starting Class |
H |
H |
H |
| 절연계급 Insulation Class |
F |
F |
F |
|
 |
|
|
|
;)
