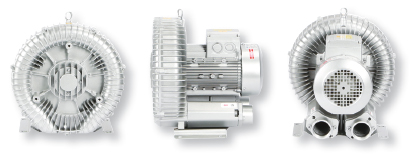

| 링브로워 각 모델 |
| |
| - 1 Stage 3 Phase(1단 3상) |
| |
|
| IHB- |
500,600,700,500(PH),600(PH),700(PH) |
Single
Phase (3Ø) |
|
 |
| IHB-500 |
 |
 |
|
|
 |
| 항
목 |
IHB-500 |
500PH
프리미엄 고효율 |
IHB-600 |
600PH
프리미엄 고효율 |
IHB-700 |
700PH
프리미엄 고효율 |
| 50Hz |
60Hz |
60Hz |
50Hz |
60Hz |
60Hz |
50Hz |
60Hz |
60Hz |
| 상수 Phase |
3 |
| 모터 Motor |
HP |
3 |
3.4 |
3.4 |
4 |
5 |
4 |
5.3 |
6.1 |
5.3 |
| kW |
2.2 |
2.55 |
2.55 |
3 |
3.7 |
3 |
4 |
4.6 |
4.0 |
| 소음 Sound Level |
dB(A) |
72 |
76 |
76 |
72 |
76 |
76 |
72 |
76 |
76 |
| 전류 Current(A) |
220V |
9.8 |
11.2 |
10.7 |
12 |
14 |
13.8 |
17 |
17 |
16.9 |
| 380V |
5.7 |
6.5 |
6.2 |
6.9 |
8.1 |
8.0 |
9.8 |
9.8 |
9.2 |
| 정격토출 Rated Pressure |
mmaq |
2200 |
2000 |
2000 |
2800 |
3000 |
3000 |
3300 |
3400 |
3400 |
inch  |
86.61 |
78.74 |
78.74 |
110.24 |
118.11 |
118.11 |
129.92 |
133.86 |
133.86 |
| psig |
3.13 |
2.84 |
2.84 |
3.98 |
4.27 |
4.27 |
4.69 |
4.84 |
4.84 |
| 정격흡입 Rated Vacuum |
mmaq |
2300 |
2200 |
2200 |
2600 |
2800 |
2800 |
3200 |
3300 |
3300 |
| inch |
90.56 |
86.61 |
86.61 |
102.36 |
110.24 |
110.24 |
125.98 |
129.92 |
129.92 |
| psig |
3.27 |
3.13 |
3.13 |
3.70 |
3.98 |
3.98 |
4.55 |
4.69 |
4.69 |
| 최대풍량 Max Air Flow |
㎥/min |
5 |
6 |
6 |
5 |
6 |
6 |
5 |
6 |
6 |
| cfm |
176.6 |
211.9 |
211.9 |
176.6 |
211.9 |
211.9 |
176.6 |
211.9 |
211.9 |
| 재질 Material |
Impeller |
ALDC12.1 |
| Casing |
ALDC12.1 |
| 베어링 Bearing |
Front/Rear |
6206z/6205zz |
| 무게 Weight |
33.7 |
36.9 |
39.5 |
| 콘덴서 Capacitor |
K |
K |
K |
| 절연계급 Insulation Class |
F |
F |
F |
|
 |
|
|
|
;)
